🚀 Ollama on Embedded Systems


Serve Ollama on embedded without pain

This repository provides tools and scripts for running Ollama on embedded systems and local networks with minimal setup. Includes solutions for network service configuration and SSH connection management with automatic key generation.

GitHub Repository: https://github.com/wronai/ollama/

🔥 Quick Start

# Download all scripts
wget https://raw.githubusercontent.com/wronai/ollama/main/ollama.sh
wget https://raw.githubusercontent.com/wronai/ollama/main/ssh.sh
wget https://raw.githubusercontent.com/wronai/ollama/main/monitor.sh
wget https://raw.githubusercontent.com/wronai/ollama/main/test.sh

# Make executable
chmod +x *.sh

# Start Ollama network service
./ollama.sh

# Connect to remote server with automatic SSH key setup
./ssh.sh root@192.168.1.100

# Monitor system performance in real-time
./monitor.sh

📋 Table of Contents

🔍 Overview

Ollama Network Service (ollama.sh)

Automatically configures Ollama to serve across your entire network, making AI models accessible from any device on your local network. Features include:

SSH Connection Script (ssh.sh)

Fixes common SSH authentication issues and automatically manages SSH keys:

Real-time System Monitor (monitor.sh)

Advanced ASCII-based system monitoring tool with beautiful visualizations:

📁 Scripts

ollama.sh

Main script for setting up Ollama network service.

Key Features:

ssh.sh

SSH connection script with automatic key management.

Key Features:

monitor.sh

Real-time ASCII system monitoring tool.

Key Features:

🌐 Ollama Network Service

Quick Start

# Make executable
chmod +x ollama.sh

# Start with default settings (port 11434)
./ollama.sh

# Start on custom port
./ollama.sh -p 8081

# Test the service
./ollama.sh --test

# View API examples
./ollama.sh --examples

Service Management

# Check service status
sudo systemctl status ollama-network

# Start/stop/restart service
sudo systemctl start ollama-network
sudo systemctl stop ollama-network
sudo systemctl restart ollama-network

# View logs
sudo journalctl -u ollama-network -f

# Enable/disable auto-start
sudo systemctl enable ollama-network
sudo systemctl disable ollama-network

Network Access

Once running, your Ollama service will be accessible from any device on your network:

# Replace 192.168.1.100 with your server's IP
curl http://192.168.1.100:11434/api/tags

Available Commands

Command Description
./ollama.sh Start service with default settings
./ollama.sh -p PORT Start on specific port
./ollama.sh --stop Stop the service
./ollama.sh --status Show service status
./ollama.sh --test Run comprehensive tests
./ollama.sh --examples Show API usage examples
./ollama.sh --install-model Install DeepSeek Coder model
./ollama.sh --logs View service logs

🔐 SSH Connection Script

Quick Start

# Make executable
chmod +x ssh.sh

# Connect to remote host (will generate keys if needed)
./ssh.sh root@192.168.1.100

# Connect to different host
./ssh.sh user@hostname.local

What it does automatically:

  1. Checks for ED25519 key - generates if missing
  2. Copies key to remote host - prompts for password once
  3. Establishes connection - uses key authentication
  4. Handles failures - falls back to password auth if needed

Key Files Created:

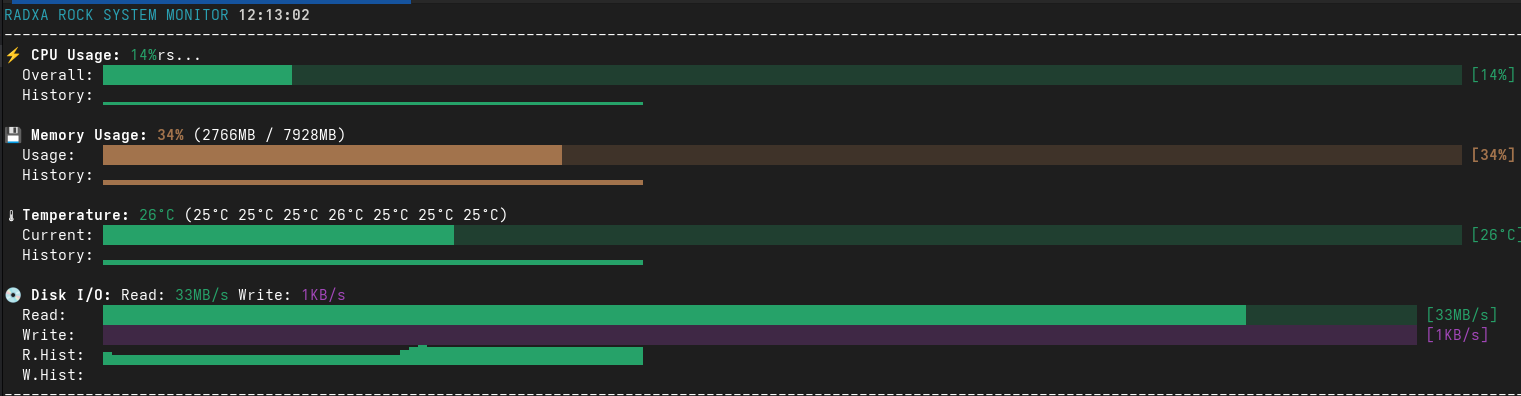

📊 Real-time System Monitor

Quick Start

# Make executable
chmod +x monitor.sh

# Start monitoring
./monitor.sh

# Exit with Ctrl+C or press 'q'

Display Sections

⚡ CPU Usage

⚡ CPU Usage: 25%
  Overall: ███████░░░░░░░░░░░░░░ [25%]
  History: ▁▂▃▄▅▆▇█▇▆▅▄▃▂▁▂▃▄▅▆

💾 Memory Usage

💾 Memory Usage: 45% (3584MB / 7928MB)
  Usage:   ███████████░░░░░░░░░ [45%]
  History: ▃▄▅▄▃▄▅▆▅▄▃▄▅▄▃▄▅▄▃▄

🌡️ Temperature Monitoring

🌡️ Temperature: 42°C (38°C 41°C 42°C 39°C)
  Current: ████████░░░░░░░░░░░░ [42°C]
  History: ▃▃▄▄▅▅▄▄▃▃▄▄▅▅▆▆▅▅▄▄

💿 Disk I/O Tracking

💿 Disk I/O: Read: 15.2MB/s Write: 8.7MB/s
  Read:    ████████████░░░░░░░░ [15.2MB/s]
  Write:   ██████░░░░░░░░░░░░░░ [8.7MB/s]
  R.Hist:  ▁▂▃▄▅▆▇▆▅▄▃▂▁▂▃▄▅▆▇▆
  W.Hist:  ▁▁▂▂▃▃▄▄▅▅▄▄▃▃▂▂▁▁▂▂

Color Scheme

Performance Testing

Generate system load for testing the monitor:

# CPU stress test
stress --cpu 4 --timeout 30s

# Memory stress test
stress --vm 2 --vm-bytes 1G --timeout 30s

# Disk I/O test
dd if=/dev/zero of=/tmp/test bs=1M count=500
sudo hdparm -t /dev/mmcblk0

# Temperature monitoring during load
# Monitor will show real-time changes in all metrics

🛠️ Installation

Prerequisites

For Ollama Service:

For SSH Script:

For System Monitor:

One-Line Installation

# Download and setup everything
curl -fsSL https://raw.githubusercontent.com/wronai/ollama/main/install.sh | bash

Manual Installation

  1. Download scripts:
    wget https://raw.githubusercontent.com/wronai/ollama/main/ollama.sh
wget https://raw.githubusercontent.com/wronai/ollama/main/ssh.sh
wget https://raw.githubusercontent.com/wronai/ollama/main/monitor.sh
  2. Make executable:
    chmod +x ollama.sh ssh.sh
  3. Install Ollama (if needed):
    curl -fsSL https://ollama.ai/install.sh | sh
  4. Run scripts: ```bash

    Start Ollama network service

    ./ollama.sh

Connect to remote server

./ssh.sh user@hostname

Monitor system performance

./monitor.sh


### Alternative Download Methods

```bash
# Using curl
curl -O https://raw.githubusercontent.com/wronai/ollama/main/ollama.sh
curl -O https://raw.githubusercontent.com/wronai/ollama/main/ssh.sh
curl -O https://raw.githubusercontent.com/wronai/ollama/main/monitor.sh

# Clone entire repository
git clone https://github.com/wronai/ollama.git
cd ollama
chmod +x *.sh

📚 Usage Examples

Ollama API Examples

1. List Available Models

curl -s http://192.168.1.100:11434/api/tags | jq '.models[].name'

2. Generate Code

curl -X POST http://192.168.1.100:11434/api/generate \
     -H 'Content-Type: application/json' \
     -d '{
       "model": "deepseek-coder:1.3b",
       "prompt": "Write a Python function to sort a list",
       "stream": false
     }'

3. Chat Conversation

curl -X POST http://192.168.1.100:11434/api/chat \
     -H 'Content-Type: application/json' \
     -d '{
       "model": "deepseek-coder:1.3b",
       "messages": [
         {"role": "user", "content": "Explain recursion in programming"}
       ],
       "stream": false
     }'

4. Pull New Model

curl -X POST http://192.168.1.100:11434/api/pull \
     -H 'Content-Type: application/json' \
     -d '{"name": "mistral:latest"}'

5. Streaming Response

curl -X POST http://192.168.1.100:11434/api/generate \
     -H 'Content-Type: application/json' \
     -d '{
       "model": "deepseek-coder:1.3b",
       "prompt": "Create a REST API in Python",
       "stream": true
     }'

Python Client Example

import requests
import json

class OllamaClient:
    def __init__(self, host="192.168.1.100", port=11434):
        self.base_url = f"http://{host}:{port}"

    def generate(self, model, prompt, stream=False):
        response = requests.post(
            f"{self.base_url}/api/generate",
            json={
                "model": model,
                "prompt": prompt,
                "stream": stream
            }
        )
        return response.json()

    def chat(self, model, messages, stream=False):
        response = requests.post(
            f"{self.base_url}/api/chat",
            json={
                "model": model,
                "messages": messages,
                "stream": stream
            }
        )
        return response.json()

    def list_models(self):
        response = requests.get(f"{self.base_url}/api/tags")
        return response.json()

# Usage
client = OllamaClient()

# Generate code
result = client.generate(
    "deepseek-coder:1.3b",
    "Write a function to calculate fibonacci numbers"
)
print(result['response'])

# Chat
messages = [{"role": "user", "content": "What is machine learning?"}]
result = client.chat("deepseek-coder:1.3b", messages)
print(result['message']['content'])

SSH Examples

# Connect to server (first time - will setup keys)
./ssh.sh root@192.168.1.100

# Connect to different user
./ssh.sh admin@server.local

# Connect to server with non-standard port (manual)
ssh -p 2222 -i ~/.ssh/id_ed25519 root@192.168.1.100

📖 API Reference

Ollama REST API Endpoints

Endpoint Method Description
/api/tags GET List available models
/api/generate POST Generate text completion
/api/chat POST Chat conversation
/api/pull POST Download model
/api/push POST Upload model
/api/show POST Show model information
/api/copy POST Copy model
/api/delete DELETE Delete model

Request/Response Examples

Generate Text

Request:

{
  "model": "deepseek-coder:1.3b",
  "prompt": "Write hello world in Python",
  "stream": false,
  "options": {
    "temperature": 0.7,
    "top_p": 0.9
  }
}

Response:

{
  "model": "deepseek-coder:1.3b",
  "created_at": "2025-06-02T08:42:07.311663549Z",
  "response": "print(\"Hello, World!\")",
  "done": true,
  "context": [...],
  "total_duration": 1234567890,
  "load_duration": 1234567,
  "prompt_eval_duration": 1234567,
  "eval_count": 10,
  "eval_duration": 1234567890
}

🔧 Troubleshooting

Common Issues

Ollama Service Won’t Start

# Check if port is in use
ss -tlnp | grep :11434

# Check service logs
sudo journalctl -u ollama-network -f

# Restart service
sudo systemctl restart ollama-network

# Check firewall
sudo ufw status

Network Access Issues

# Test local connection first
curl http://localhost:11434/api/tags

# Check firewall rules
sudo ufw allow 11434/tcp

# Check if service binds to all interfaces
ss -tlnp | grep :11434
# Should show 0.0.0.0:11434, not 127.0.0.1:11434

SSH Connection Problems

# Clear SSH agent
ssh-add -D

# Remove old host keys
ssh-keygen -R hostname

# Try with password only
ssh -o IdentitiesOnly=yes -o PreferredAuthentications=password user@host

# Debug connection
ssh -v user@host

Model Download Failures

# Check disk space
df -h

# Check internet connection
curl -I https://ollama.ai

# Try smaller model
ollama pull tinyllama

# Check Ollama logs
tail -f /tmp/ollama.log

Performance Optimization

For Better Performance:

# Increase model context (if you have RAM)
export OLLAMA_CONTEXT_LENGTH=8192

# Enable GPU acceleration (if available)
export OLLAMA_INTEL_GPU=1

# Adjust concurrent requests
export OLLAMA_MAX_QUEUE=512

Monitor Resource Usage:

# CPU and memory usage
htop

# GPU usage (if applicable)
nvidia-smi

# Disk usage
df -h ~/.ollama/models/

Security Considerations

Network Security:

SSH Security:

🚀 RK3588 GPU & NPU Support

This repository includes comprehensive support for RK3588’s hardware acceleration capabilities, including both the Mali-G610 GPU and the Neural Processing Unit (NPU).

Key Features

Getting Started

  1. Install Dependencies
    # Install GPU drivers and OpenCL
./rkgpu.sh

# Install NPU drivers and tools
./rknpu.sh

RKNPU.md


  1. Verify Installation
    # Test GPU functionality
./testgpu.sh

# Test NPU functionality
./testnpu.sh
  2. Using with Ollama
    # Enable GPU acceleration
OLLAMA_GPU=1 ollama serve

# Enable NPU acceleration (experimental)
OLLAMA_NPU=1 ollama serve

For detailed documentation, see RK3588 Documentation and Testing Guide.

ollama run qwen3:4b
OLLAMA_NPU=1 ollama serve

🧪 Testing

We provide comprehensive testing tools to verify your RK3588 hardware acceleration setup:

GPU Testing (testgpu.sh)

# Run all GPU tests
./testgpu.sh

# Run specific test category
./testgpu.sh --category opencl

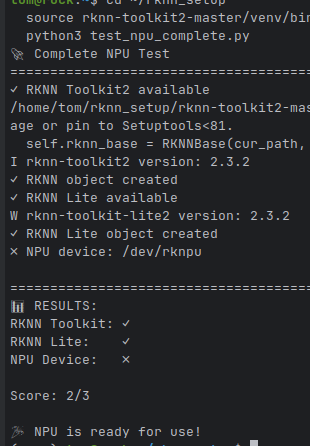

NPU Testing (testnpu.sh)

# Run all NPU tests
./testnpu.sh

# Test specific model
./testnpu.sh --model path/to/model.rknn

Test Coverage

For detailed testing documentation, see Test.md.

📞 Support

Getting Help

  1. GitHub Issues: https://github.com/wronai/ollama/issues
  2. Check Ollama logs: sudo journalctl -u ollama-network -f
  3. Test Ollama connectivity: ./ollama.sh --test
  4. View Ollama examples: ./ollama.sh --examples
  5. Check Ollama service status: sudo systemctl status ollama-network
  6. System monitor troubleshooting:
    # Check terminal capabilities
echo $TERM
tput cols; tput lines

# Test system access
cat /proc/stat | head -5
ls /sys/class/thermal/
cat /proc/diskstats | head -5

Useful Commands

# Complete system status check
./ollama.sh --test
./monitor.sh &  # Start monitor in background

# View all running services
systemctl list-units --type=service --state=running | grep ollama

# Check network configuration for Ollama
ip addr show
ss -tlnp | grep ollama

# Monitor real-time logs
tail -f /var/log/syslog | grep ollama

# System performance baseline
# Terminal 1: Start monitoring
./monitor.sh

# Terminal 2: Generate test load
stress --cpu 2 --vm 1 --vm-bytes 500M --timeout 60s
sudo hdparm -t /dev/mmcblk0
  1. Enable and start the service: sudo systemctl daemon-reload sudo systemctl enable ollama-network.service sudo systemctl start ollama-network.service

Check service status: sudo systemctl status ollama-network.service

bash ollm.sh

# Stop any existing Ollama processes
sudo pkill -f ollama || true

# Start Ollama with network access on port 8081
OLLAMA_HOST=0.0.0.0:8081 OLLAMA_ORIGINS=* ollama serve &

# Allow through firewall
sudo ufw allow 8081/tcp || true

# Wait a moment, then test
sleep 5
curl -s http://localhost:8081/api/tags

🤝 Contributing

Contributions welcome! Please feel free to submit issues and pull requests to the GitHub repository.

How to Contribute:

  1. Fork the repository
  2. Create a feature branch: git checkout -b feature-name
  3. Make your changes
  4. Test thoroughly
  5. Submit a pull request

Reporting Issues:

📄 License

This project is open source. Feel free to modify and distribute.

Repository: https://github.com/wronai/ollama/

Happy coding with Ollama! 🚀🤖

This site is open source. Improve this page.
